Pressure Sensor

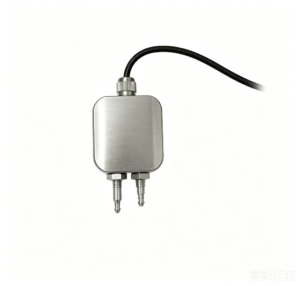

PT600 Micro Differential Pressure Transmitter | 0.2%FS Accuracy

Measuring Range： -10 KPa ~ +10 KPa (Bidirectional)
Accuracy Class： 0.2 Class (±0.2% FS)
Overload Pressure： 2 x Full Scale
Response Time： 5 ms (rise to 90% FS)
Long-term Stability： ±0.2%

MPTW500 Miniature Pressure Transducer | High Accuracy MEMS Sensor | Dabey

The MPTW500 Series is a high-precision miniature pressure transducer designed for demanding industrial and aerospace applications. Built with advanced MEMS silicon micromachining technology and proprietary oil-filled dielectric isolation,

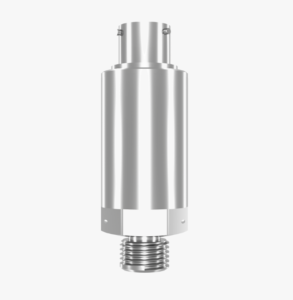

MPTW250 high-precision wide-temperature aviation pressure transducer with micro MEMS chip and 316L stainless steel housing

MPTW250 Aviation Pressure Transducer

Wide temperature range: -55℃ to 150℃ for harsh environments
High precision: 0.1% / 0.2% FS accuracy for reliable measurement
10 kHz bandwidth, fast response for dynamic pressure testing
Sturdy stainless steel build, excellent vibration

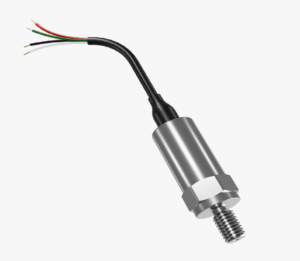

MPT500 Miniature Aerospace Pressure Sensor, Direct Replacement for Kulite HKM-17-500 Series

Miniature aerospace pressure transducer MPT500

Specification
Measuring range: Absolute pressure: Optional between 0 and 70MPa
Seal gauge pressure: optional between 0 and 70MPa
Accuracy : A1:0.2% FS5BFSL A2:0.1% FS5BFSL
Chip vibration frequency: >400KHz

‑55°C to

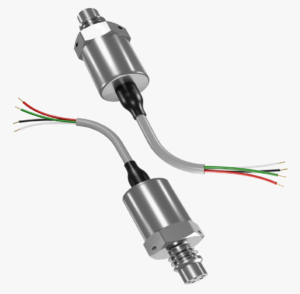

MPTW800 miniature dynamic pressure sensor with 400kHz response rate for aerospace wind tunnel testing and Kulite transducer replacement

High frequency dynamic pressure sensor MPTW800

Specification

Measuring range: Absolute pressure: Optional between 0 and 70MPa
Seal gauge pressure: optional between 0 and 70MPa
Accuracy: A1:0.2% FS A2:0.1% FS
Wide temperture range:-55-150 degree
Overload pressure 2 2xFS5
Burst pressure 3×FS5

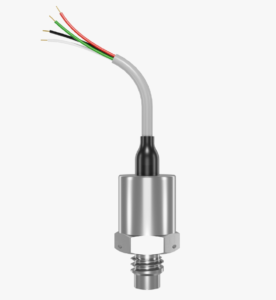

MPT800 miniature aerospace pressure sensor with 400kHz dynamic frequency response for Kulite transducer replacement in wind tunnel testing

Aerospace Pressure Sensor MPT800

Specification
Measuring range: Absolute pressure: Optional between 0 and 70MPa
Seal gauge pressure: optional between 0 and 70MPa
Accuracy : A1:0.2% FS5BFSL A2:0.1% FS5BFSL
Overload pressure: 2xFS5
Burst pressure: 3×FS5<br

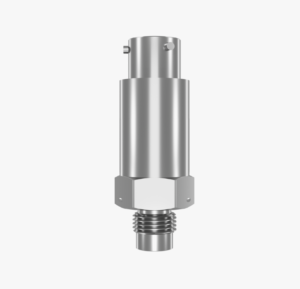

MPTW100 miniature high frequency pressure sensor with 400kHz response for Kulite replacement in aerospace wind tunnel testing.

MPTW100 High frequency pressure sensor

Specification

Range: Absolute pressure: Optional between 0-70MPa
Seal gauge pressure: optional between 0-70MPa
Accuracy A1:0.2%FSBFSL A2:0.1% FSPBFSL
Cut-off pressure ² 2 x FS²
Burst pressure ³ 3×FS²
Working principle: four-arm Wheatstone bridge silicon based

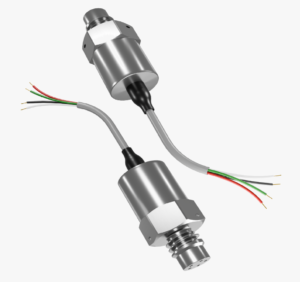

MPT100 micromachined high temperature pressure transducer featuring 400kHz response for aerospace wind tunnel testing and Kulite sensor replacement

High temperature pressure transducer MPT100

Range : 0 to 70MPa
Pressure type: absolute or Seal gauge pressure
Accuracy : Al: 0.2% FS5BFSL A2:0.1% FS5BFSL
Operating temperature: -55℃~150℃
Overload pressure 2x FS
Burst pressure 3 x FS
Working principle Four-arm

PK40X High purity pressure sensor

Seal: Special pressure process connection with semiconductor
Test: 100% helium leak test
Packing: Vacuum packing in clean room
Surface treatment: EP level Ra≤0.13µm at the process connection

Application

Photovoltaic semiconductor
High
