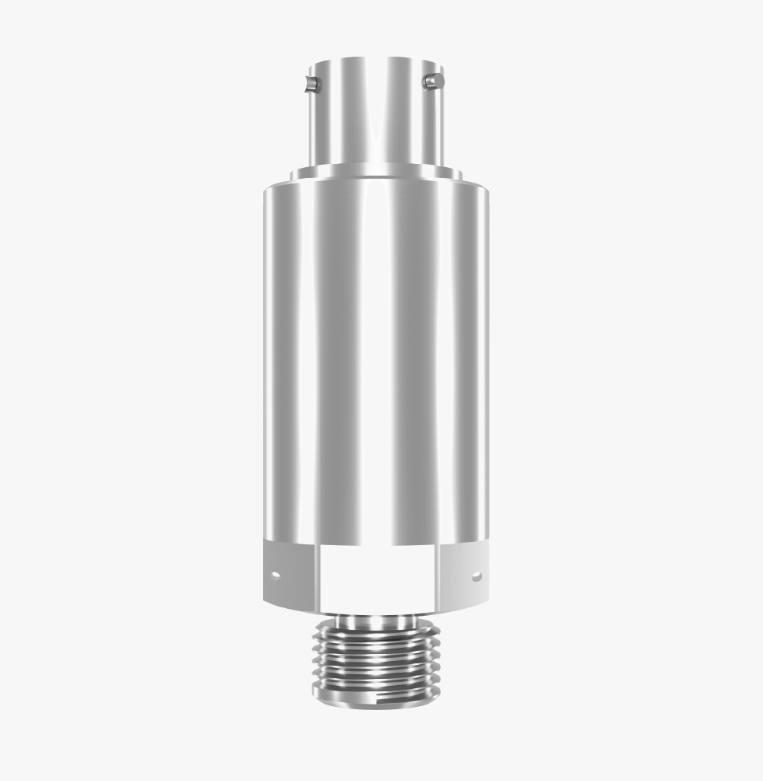

MPTW250 high-precision wide-temperature aviation pressure transducer with micro MEMS chip and 316L stainless steel housing

MPTW250 Aviation Pressure Transducer

Name: {{post_title}}
Rating: 4.7 (18 reviews)

Wide temperature range: -55℃ to 150℃ for harsh environments
High precision: 0.1% / 0.2% FS accuracy for reliable measurement
10 kHz bandwidth, fast response for dynamic pressure testing
Sturdy stainless steel build, excellent vibration & shock resistance
Multiple ranges, outputs and connectors for flexible selection
Full support for custom specifications to fit unique needs

MPTW250 Wide-Temperature High-Precision Aviation Pressure Transducer

MPTW250 aviation pressure transducer delivers stable, fast pressure measurement. It works reliably under extreme cold, high heat, strong vibration and heavy shock. We support full custom specs for aerospace, automotive and all industrial testing projects.

Specifically, we develop the MPTW250 series pressure transducer for strict aerospace and industrial test conditions. It adopts mature MEMS sensing chips and isolated oil filling technology to keep long-term measurement stability.

Furthermore, we build the whole shell with stainless steel. The solid structure holds up to 20g sine vibration and 50g half-sine shock. It fits well in aircraft, engine test benches and heavy industrial equipment.

Meanwhile, this transducer covers a wide working temperature from -55℃ to 150℃. Buyers can pick matching temperature compensation grades to cut data drift during temperature changes.

In addition, it carries 10 kHz circuit bandwidth. The quick signal response meets all dynamic pressure test needs for aviation aerodynamic experiments. We offer two standard accuracy levels to fit different test standards.

For easy on-site installation, we supply diverse power supply modes and electrical output signals. Customers can also swap pressure thread ports and aviation connectors freely.

Therefore, the MPTW250 transducer becomes a reliable pressure test solution for global aerospace, petrochemical, shipbuilding and machinery clients. We provide full customization to match special equipment parameters.

Key Features

Wide temperature adaptability: Operating range from -55℃ to 150℃ with optional temperature compensation grades
High precision & stability: 0.1% FS / 0.2% FS accuracy, low zero drift and long service life
High frequency response: 10 kHz bandwidth for dynamic pressure testing
Rugged structure: Full stainless steel housing, anti-vibration and anti-shock design
Diverse specifications: Multiple pressure ranges, output signals and connectors for selection
Strong compatibility: Suitable for various liquid and gas measuring media
Flexible customization: Custom pressure ports, signals and ranges to meet special requirements

Main Applications

Aerospace & Aviation: Aero-engine bench test, aerodynamic testing, aircraft pressure monitoring, aviation component performance check
Automobile Manufacturing: Vehicle dynamic pressure test, engine pressure detection, new energy pipeline monitoring
Petroleum & Petrochemical: Pipeline pressure measurement, downhole pressure monitoring, chemical equipment testing
Industrial Automation: Pipeline pressure collection, mechanical equipment monitoring, production line pressure control
Shipbuilding: Marine equipment test, ship pipeline monitoring, ocean engineering pressure measurement
Construction Machinery: Hydraulic system detection, engineering machine load pressure tracking

Technical Data

Category	Item	Technical Specification
Pressure Range	Absolute / Sealed Gauge Pressure (MPa)	0~0.01, 0~0.02, 0~0.05, 0~0.1, 0~0.2, 0~0.5, 0~1, 0~2, 0~5, 0~10, 0~15, 0~30, 0~35; Custom ranges available
	Gauge / Differential Pressure (MPa)	0~0.01, 0~0.02, 0~0.05, 0~0.1, 0~0.2, 0~0.5, 0~1, 0~2, 0~5; Custom ranges available
	Extended Range (Psi)	0~150, 0~300, 0~700, 0~1500, 0~5000; Non-standard units/ranges customizable
Accuracy & Pressure Resistance	Comprehensive Accuracy	A1: 0.2%FS BFSL; A2: 0.1%FS BFSL; Custom accuracy supported
	Overload Pressure	2×FS (Max ≤ 1.5 MPa on negative pressure side)
	Burst Pressure	3×FS (Max ≤ 1.5 MPa on negative pressure side)
Temperature Performance	Operating & Storage Temperature	-55℃ ~ 150℃
	Temperature Compensation Range	Optional: -55℃ ~ 150℃
	Zero & Full Scale Drift (S1/S2)	＜ ±1.5%FS / 100℃
	Total Temperature Error (S4/S5/S6)	Typical: ＜ ±0.25%FS / 100℃; Max: ＜ ±0.5%FS / 100℃
Frequency & Electrical Performance	Circuit Bandwidth	10 kHz @ 3dB
	Actual Frequency Response	Typical 10 kHz (Affected by installation and measuring medium)
	Power-up Time	S1/S2: ＜ 1 ms; S4/S5/S6: ＜ 200 ms
	Zero & Full-Scale Output Deviation	Within ±5%FS (Customizable)
	Insulation Resistance	≥ 100 MΩ @ 50VDC
	Electrical Strength	Leakage current ≤ 5mA @ 50VAC RMS
Mechanical Performance	Vibration Resistance	20g peak, sine wave 10–2000 Hz
	Shock Resistance	50g half-sine wave, duration 11 ms
	Housing Material	Standard: 316L / 17-4PH stainless steel; Custom materials available
	Measuring Medium	Media compatible with 316L / 17-4PH stainless steel
	Weight	≤ 140 g (Excluding cable and connector)
Output & Power Supply	S1	10 VDC power supply, 0~100 mV output, 4-wire
	S2	8~16 VDC power supply, 0~100 mV output, 4-wire
	S4	8~32 VDC power supply, 0.5~4.5 V output, 3-wire
	S5	8~32 VDC power supply, 0~5 V output, 4-wire
	S6	14~32 VDC power supply, 0~10 V output, 4-wire
Temperature Compensation Grade	TA	25℃~80℃ / -10℃~50℃
	TB	-20℃~125℃ / -20℃~80℃
	TC	-40℃~125℃ / -40℃~80℃

FAQ

Q: What are the main applications of the MPTW250 aviation pressure transducer?

A: It is widely used in aerospace, automobile manufacturing, petroleum & petrochemical, industrial automation, shipbuilding and construction machinery, especially for aero-engine bench test and aerodynamic testing.
Q: What is the operating temperature range of this aerospace pressure transducer?

A: Its working and storage temperature ranges from -55℃ to 150℃, with multiple temperature compensation grades available for selection.
Q: What accuracy levels does the MPTW250 series offer?

A: It provides two standard accuracy options: 0.1% FS BFSL and 0.2% FS BFSL. Custom accuracy can also be supported on request.
Q: What is the frequency response of this high-frequency pressure transducer?

A: The circuit bandwidth reaches 10 kHz @ 3dB, delivering fast response for dynamic pressure measurement.
Q: Is this pressure sensor resistant to vibration and shock?

A: Yes. It can withstand 20g peak vibration (10–2000 Hz) and 50g half-sine shock, suitable for harsh working conditions.
Q: What materials are used for the transducer housing?

A: The standard housing is made of 316L / 17-4PH stainless steel, compatible with most common measuring media.
Q: Can I customize the pressure range and connectors?

A: Definitely. We support custom pressure ranges, pressure ports, electrical connectors and output signals to meet your unique demands.
Q: What overload and burst pressure can this aviation pressure transducer bear?

A: The overload pressure is 2×FS and the burst pressure is 3×FS. The negative pressure side is limited to a maximum of 1.5 MPa.
