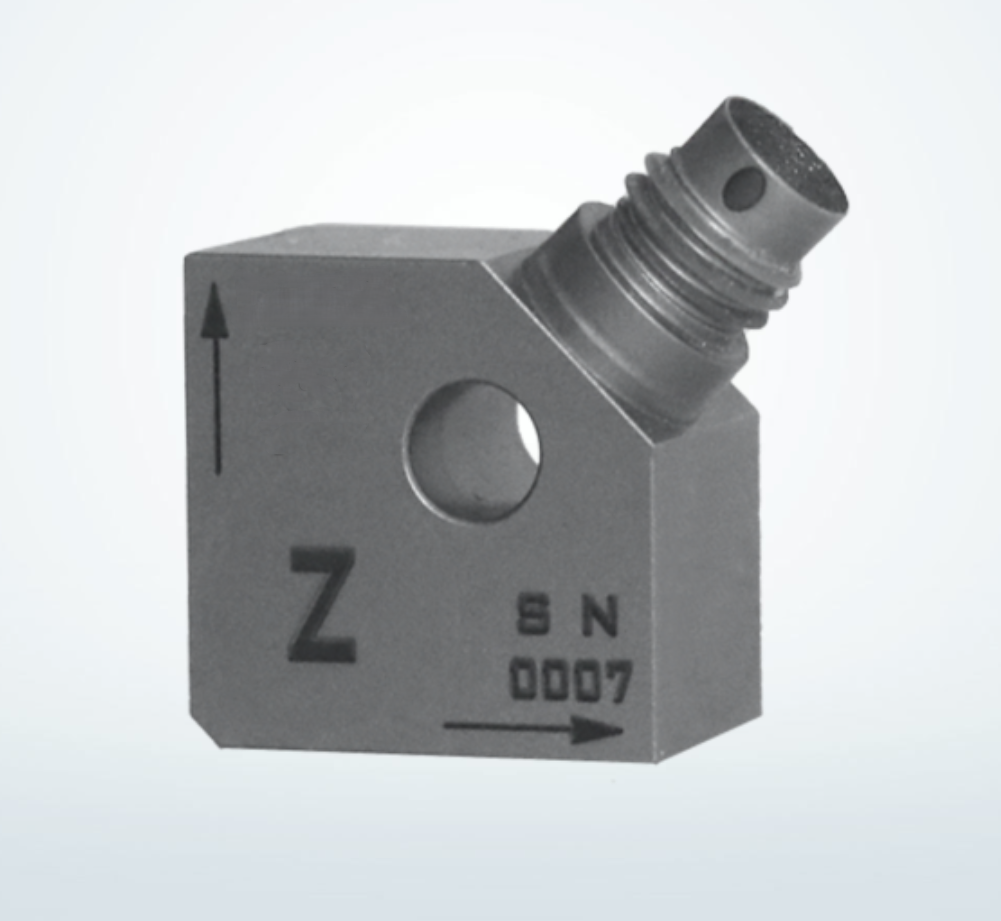

688A05 IEPE Single Axis Accelerometer (High-G Impact Type)

The 688A05 series is an industrial-grade IEPE single axis accelerometer meticulously engineered to execute precise high-amplitude vibration and dynamic shock measurements within space-constrained testing environments. Featuring integrated internal IEPE signal conditioning circuitry, this low-impedance transducer converts raw internal charge into a highly stable voltage output, allowing for distortion-free data transmission over long cable distances without signal degradation. Specially optimized for extreme transient regimes, the 688A05 pairs a formidable ±2500 g dynamic range with an ultra-stiff internal configuration yielding a resonant frequency ≥ 70 kHz, delivering definitive measurement accuracy for aerospace modal testing, automotive impact diagnostics, and military rocketry research.

Key Features

• Integrated Low-Impedance IEPE Electronics: Utilizes on-board excitation circuitry that conditions the signal internally to provide a clean voltage output, effectively suppressing triboelectric cable noise and environmental electromagnetic interference.

• Severe High-G Shock & Dynamic Survivability: Engineered to withstand sudden, transient mechanical shocks up to 8000 g pk and continuous cyclical high-frequency vibration fields up to 4000 g pk under intense testing profiles.

• Broad 10 kHz Linear Operating Zone: Achieves an exceptional mounted natural resonant frequency ≥ 70 kHz, ensuring excellent frequency tracking response and minimal phase shifting from 5 to 10,000 Hz (±10%)).

• Rugged 1/4-28 Four-Core Electrical Interface: Equipped with a heavy-duty, threaded 1/4-28 four-core multi-pin connector housed within a hermetically sealed titanium or stainless steel shell to guarantee reliable contact and zero fluid ingress.



Parameter	Specification / Value	Note / Condition
Brand & Model	Dabey Technology Model  688A05	High-G single-axis IEPE series
Sensor Type	IEPE	Internal low-impedance voltage amplification circuit
Sensitivity	2  pC/g	Standard stabilized output voltage per g unit
Measurement Range	±2500 g	Full-scale dynamic measurement window
Frequency Range (±5%)		Inquire for precise narrow-band flatness limits
Frequency Range (±10%)	5-10 k Hz	High-frequency extended linear operation zone
Resonant Frequency	≥ 70 kHz	Ultra-high stiffness limits mounting resonance errors
Shock Limit	8000 g pk	Maximum survivable transient shock threshold
Maximum Vibration	4000 g pk	Continuous sinusoidal mechanical vibration limit
Operating Temperature	-50°C to 120°C	Temperature range governed by internal IEPE chips
Housing Material	Titanium / Stainless Steel	Welded hermetic sealing with low-mass structural rigidity
Connector Type	1/4-28 four-core	Industrial multi-pin micro-coaxial independent thread layout
Primary Applications	Rocketry & Missile Separation, Automotive Impact Testing, Aerospace Modal Analysis	Optimized for extreme high-g dynamic structural diagnostics
