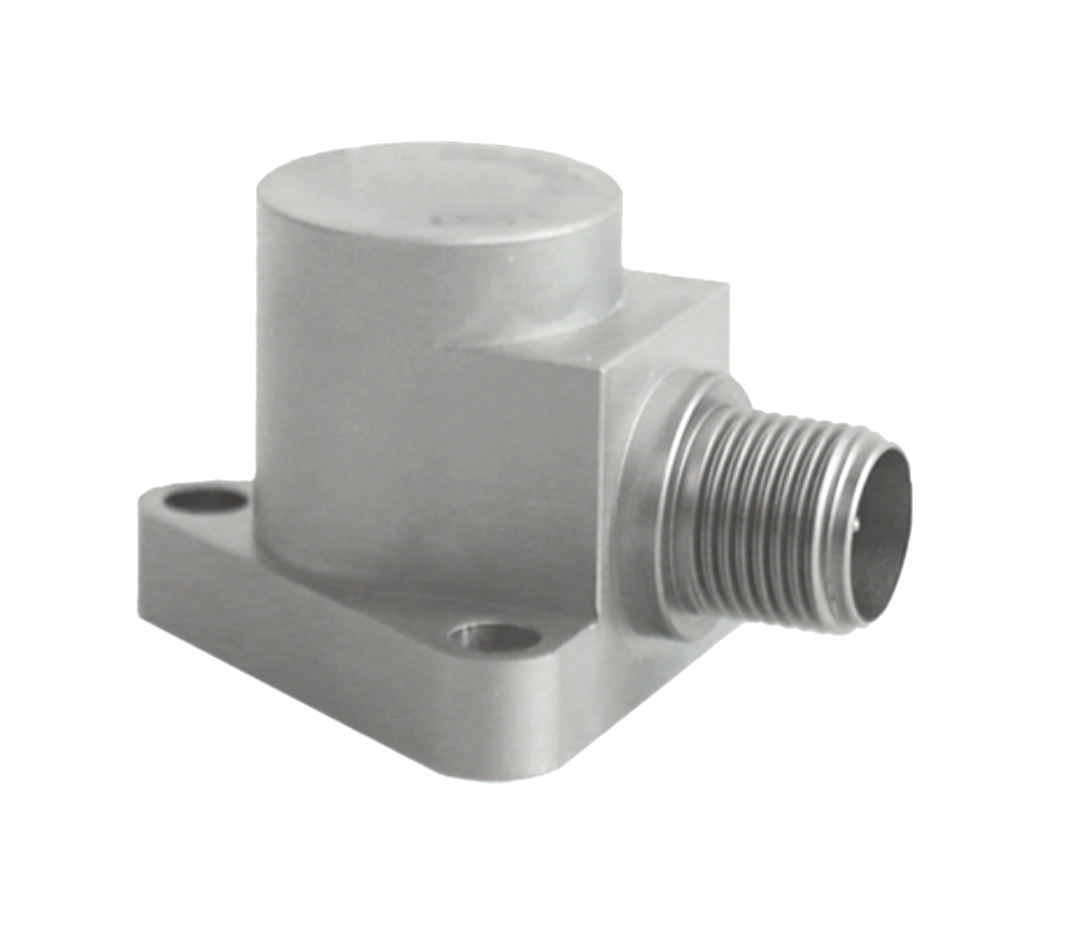

683S04 High-Temperature Charge Output Uniaxial Accelerometers

The 683S04 is a premium-engineered, high-temperature uniaxial accelerometer designed specifically for capturing critical structural dynamics and transient events in intense physical and thermal testing fields.

Operating on a specialized piezoelectric charge mode configuration, this sensor offers a 20 pC/g nominal sensitivity, a dynamic measurement threshold of ±1000 g, and a linear high-frequency bandwidth tracking flawlessly up to 11 kHz inside a rigid Titanium/Stainless Steel housing.

Engineered to function as a drop-in 1:1 direct replacement and physical equivalent for industry standard legacy PCB Piezotronics models, it provides acoustic specialists and NVH engineers with identical form factor performance with the benefit of shorter B2B supply chain lead times.

Why the 683S04 Stands Out?

• Extreme Temperature Resistance: Operates from -50°C to 260°C with ultra-low drift (0.020%/°C).
• High Sensitivity & Precision: 20 pC/g output for detecting minute vibrations.
• Wide Measurement Range: ±1000g range for versatile industrial applications.
• Anti-Interference Design: Differential signal output reduces noise in high-EMI environments.
• Rugged Construction: IP68 laser-welded housing ensures dust/water resistance.



Technical Specifications

Parameter	Specification / Value	Note / Condition
Sensor Type	Piezoelectric Charge Output	Requires external differential charge amplifier
Core Target Keyword	Uniaxial Accelerometers	Designed for single axis dynamic testing
Sensitivity	20 pC/g	Nominal room temperature calibration
Measurement Range	±1000 g	Maximum peak operational acceleration
Frequency Range (±5%)	1 to 9,000 Hz	Flat linear reference band
Frequency Range (±10%)	1 to 11,000 Hz	High-frequency extended analysis band
Resonant Frequency	≥40 kHz	Mounted natural resonant frequency
Shock Limit	3000 g pk	Maximum survival mechanical limit
Maximum Vibration	2500 g pk	Peak operational continuous vibration capacity
Operating Temperature	-50°C to 260°C	Optimized for high thermal testing cells
Housing Material	Titanium / Stainless Steel	Hermetically sealed and corrosion resistant
Connector Type	7/16 – 27 Dual-core	Differential threaded low noise signal output
Cross Reference	PCB Piezotronics Replacement	Form, fit, and function 1:1 mechanical alternative



Trusted by Industries Requiring Precision & Durability

• Energy Sector: Vibration monitoring in gas turbines and geothermal plants.
• Aerospace: Structural health analysis during engine testing.
• Automotive: Durability validation for EV powertrains.
• Heavy Machinery: Predictive maintenance in mining equipment.
